Buttons, Excel, Approvals and notification in Power Automate. Tracking a starting and end point into Excel, by triggering a button. This is a flow that I will talk about today!

The solution will have two Flow’s that could be triggered by a button. The values will be added to an excel file that is stored on OneDrive for Business. By registering the starting point with address, start date, start time and also the information of end point. I could calculated travel times between the start and end point.

How-to?

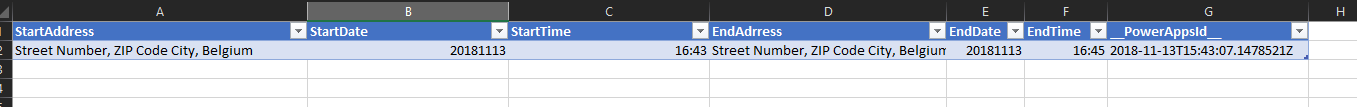

We have created a n Excel file that looks like this and contains followzing headers: StartAddress, StartDate, StartTime, EndAddress, EndDate and EndTime. __PowerAddId__ is used to create a unique id of the tracking line.

Using two MS Flow buttons to register the start and end point, including some checks to verify the current tracking status of the Flow.

Button: Start Travel Tracking

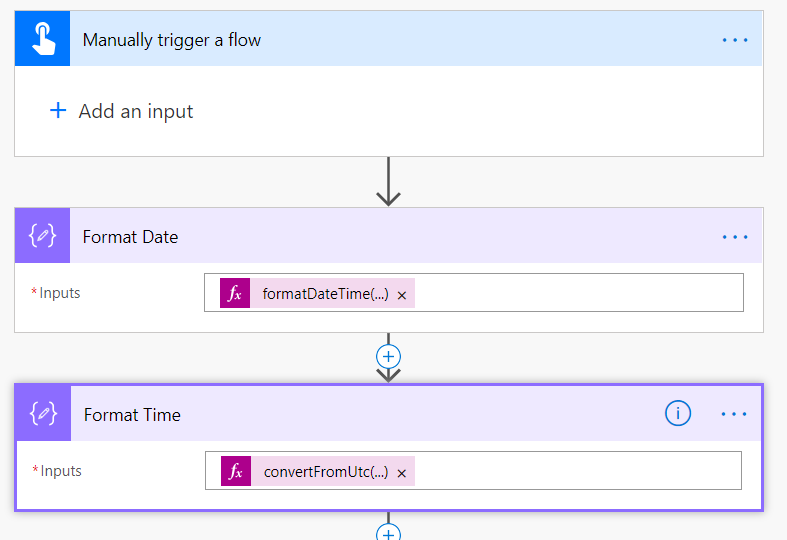

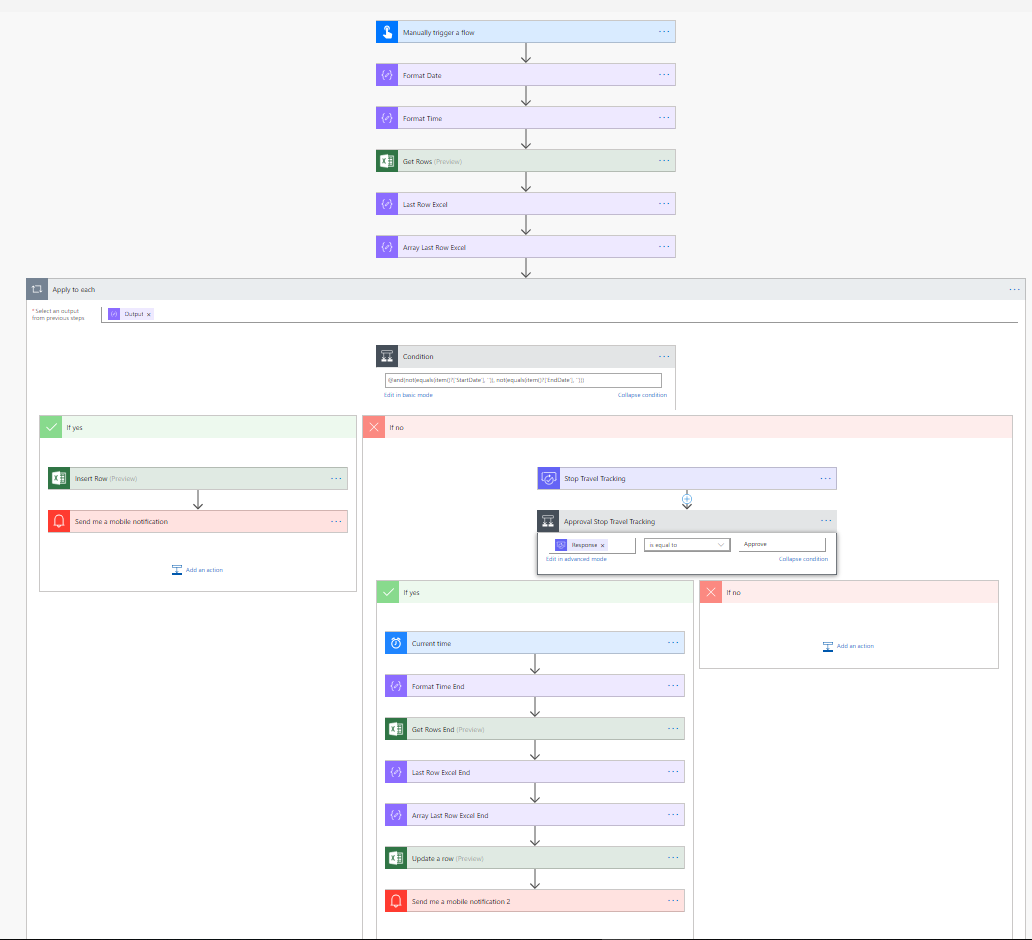

Overview flow:

Format Date – formatDateTime(triggerOutputs()[‘headers’][‘x-ms-user-timestamp’],’yyyyMMdd’)

Format Time- convertFromUtc(triggerOutputs()[‘headers’][‘x-ms-user-timestamp’],’Romance Standard Time’,’HH:mm’)
Adjust time to CET time.

Important

User Get Rows (Excel for Business), using this will not lock the file and after getting the rows you are not able to add or change fields in the Excel file.

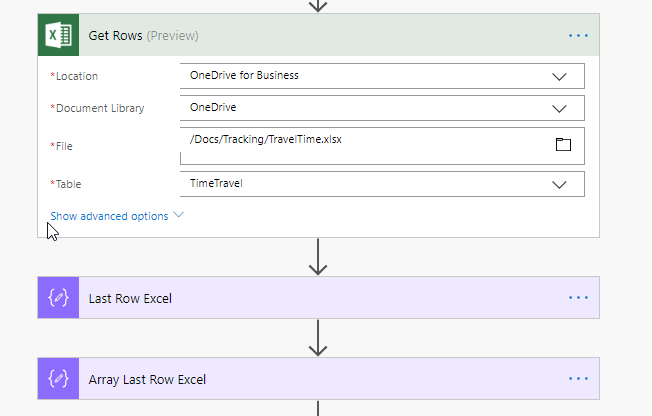

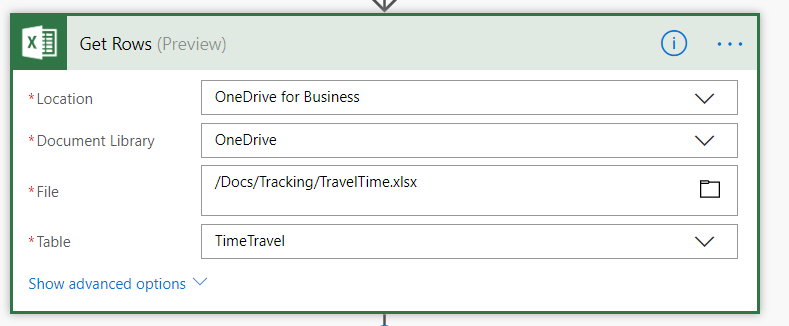

Getting the rows of an XLS file that is located on the OneDrive for Business.

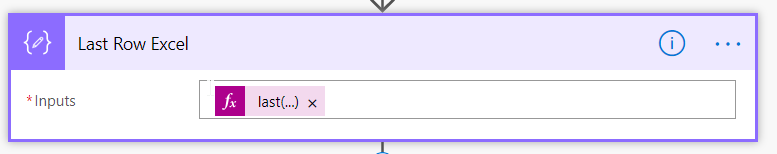

Getting the last row of the Excel file, by using following expression: last(body(‘Get_Rows’)?[‘value’])

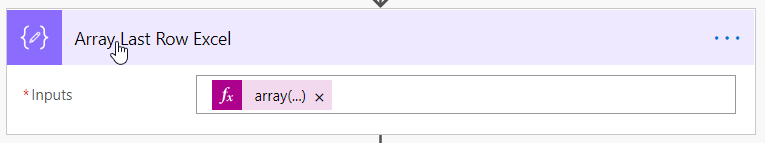

Creating an Array of the last row: array(Outputs(‘Last_Row_Excel’))

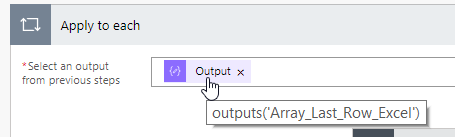

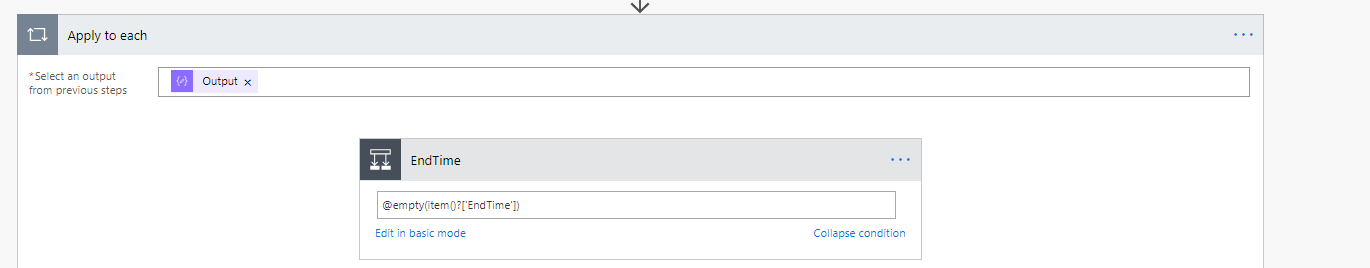

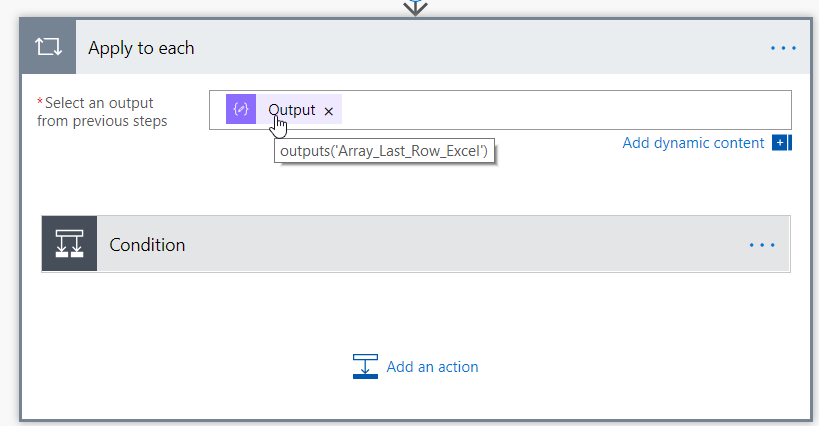

Add an Apply to each for the outputs of Array Last Row Excel

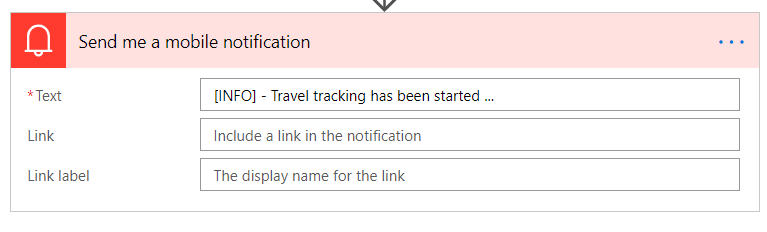

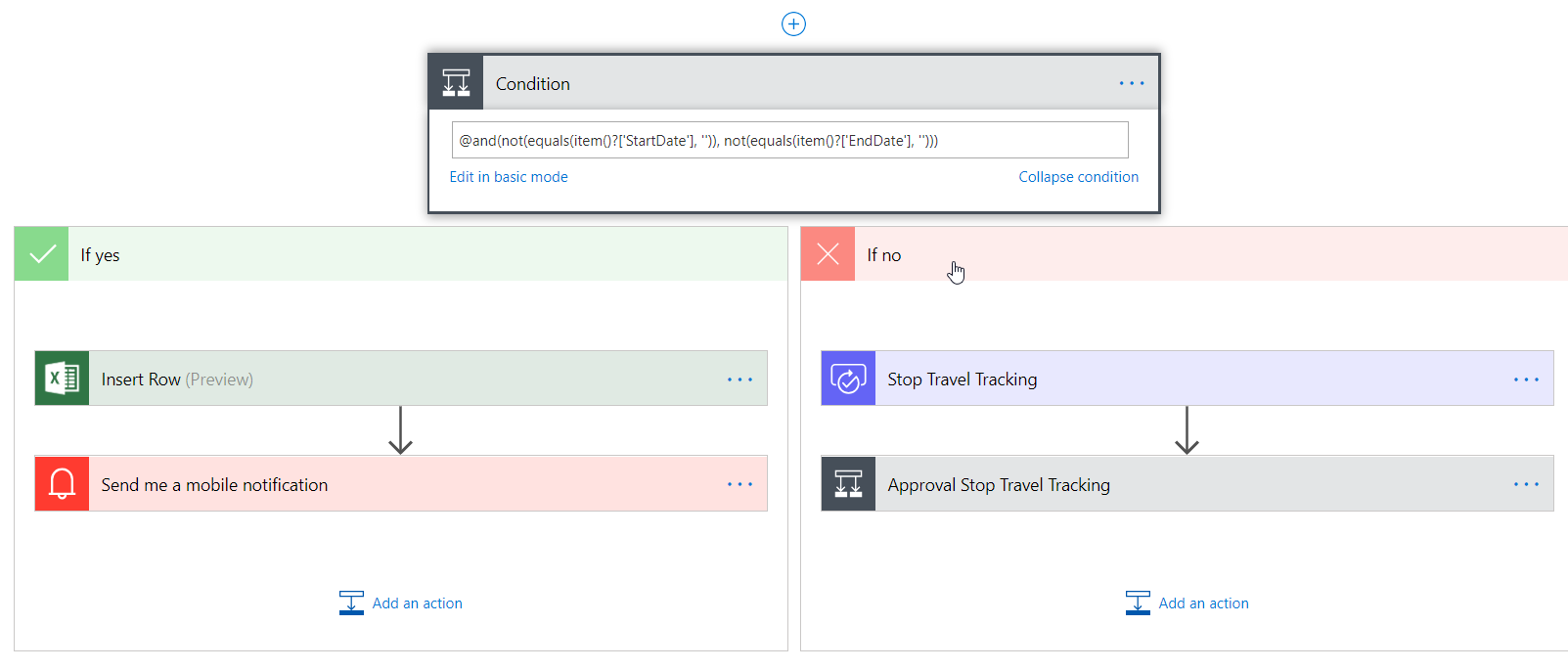

In the condition we check if the Start and End Date has been filled in, when filled in we need to add a new row, else we notify that the travel tracking was already started and not been ended correctly.

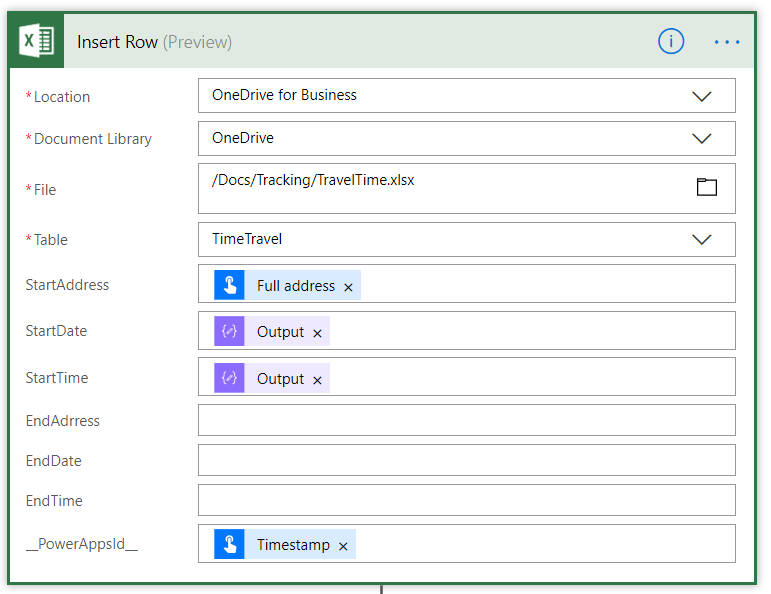

[YES]

StartDate: Outputs[‘Format_Date’]
StartTime: Outputs[‘Format_Time’]
__PowerAppsID__: triggerOutputs()[‘headers][‘x-ms-user-timestamp’]

[No]

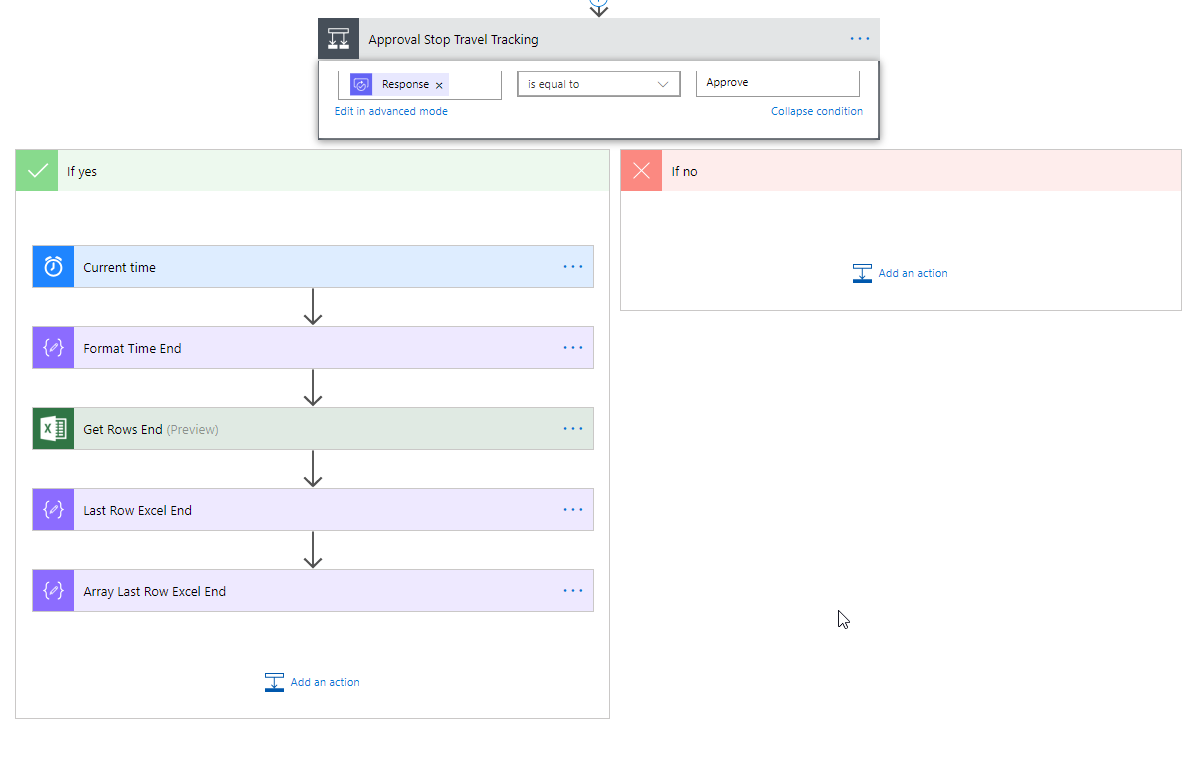

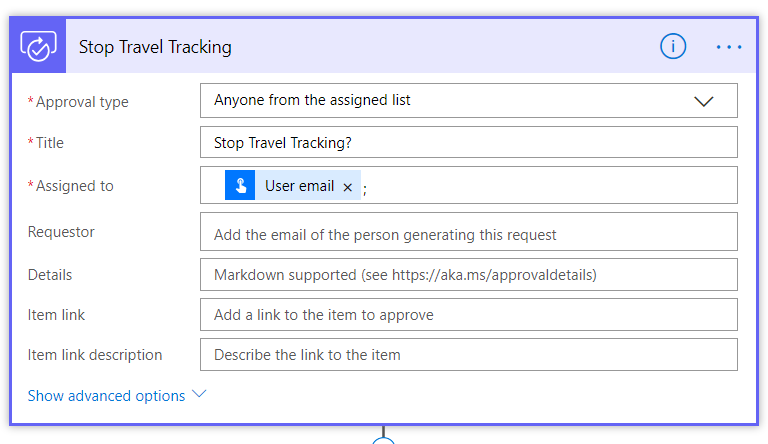

Approval notification will be sent to the mobile app, for the question [Stop Travel Tracking?]

[YES]

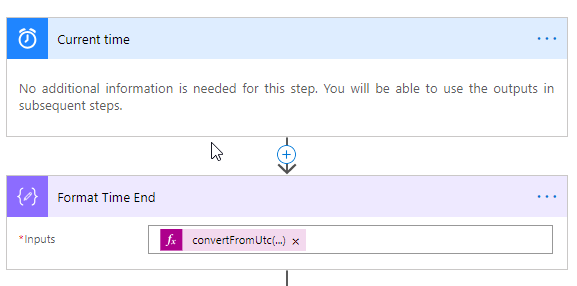

Format Time End: convertFromUtc(body(‘Current_Time’),’Romance Standard Time’,’HH:mm’)
Convert to CET Time

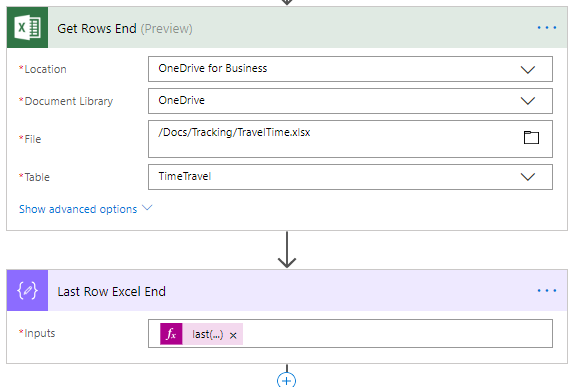

Last Row Excel End è last(body(‘Get_Rows_End’)?[‘value’])

Array Last row Excel End è array(outputs(‘Last_Row_Excel_End’))

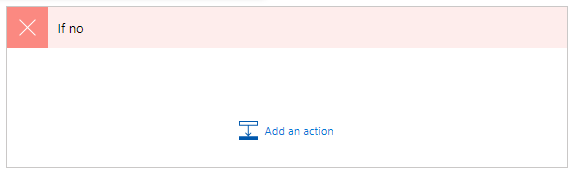

[NO]

Do nothing

Second Button – STOP TRAVEL TRACKING

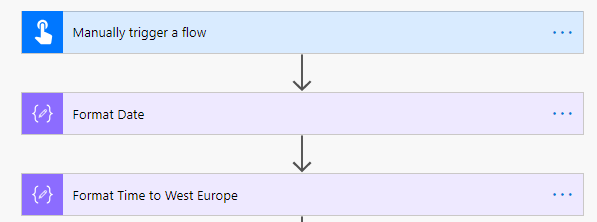

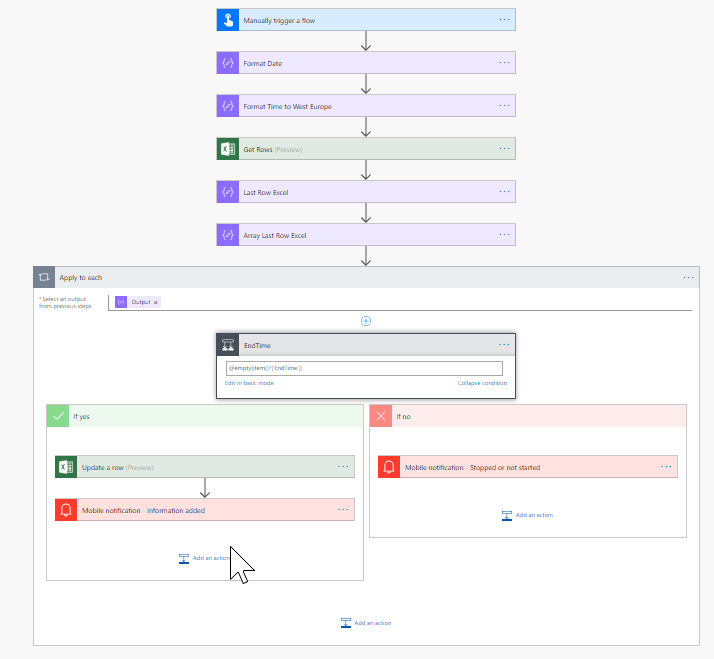

Overview Flow:

Format Date: formatDateTime(triggerOutputs()[‘headers’][‘x-ms-user-timestamp’],’yyyyMMdd’)

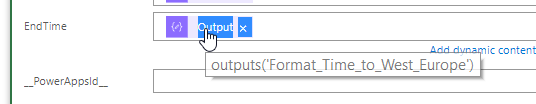

Format Time to West Europe (CET): convertFromUtc(triggerOutputs()[‘headers’][‘x-ms-user-timestamp’],’RomanceStandard Time’,’HH:mm’)

Get last row of the Excel file

Last Row Excel:  last(body(‘Get_Rows’)?[‘value’])
Array Last Row Excel: array(outputs(‘Last_Row_Excel’))

•

•

•

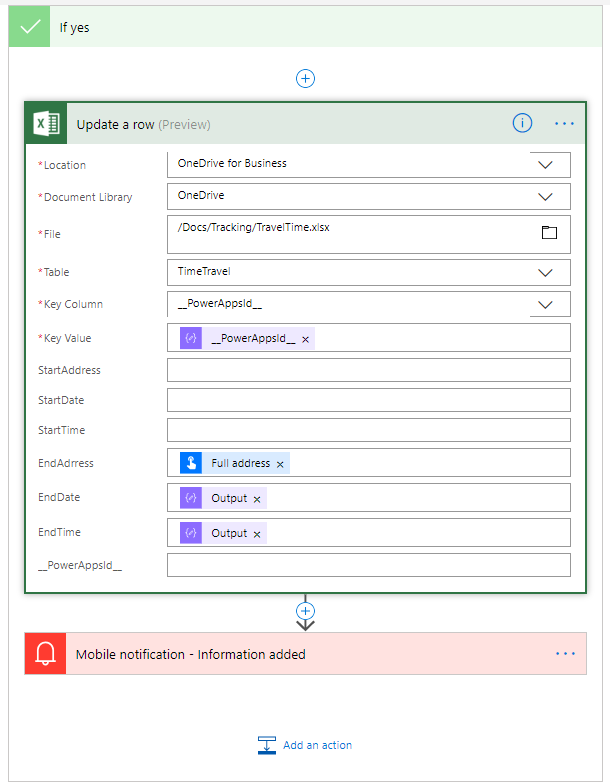

[YES]

•

•

•

•

When the End Date has been already filled in we notify by sending a notification towards the Microsoft Flow app.

Enjoy! Feedback is welcome
